Valve thread gauges — detail
Gauge family 11 / 11

Tyre valve thread plug gauges, manufactured in Pune.

ISO 4570Tyre valve thread · ISO 4570

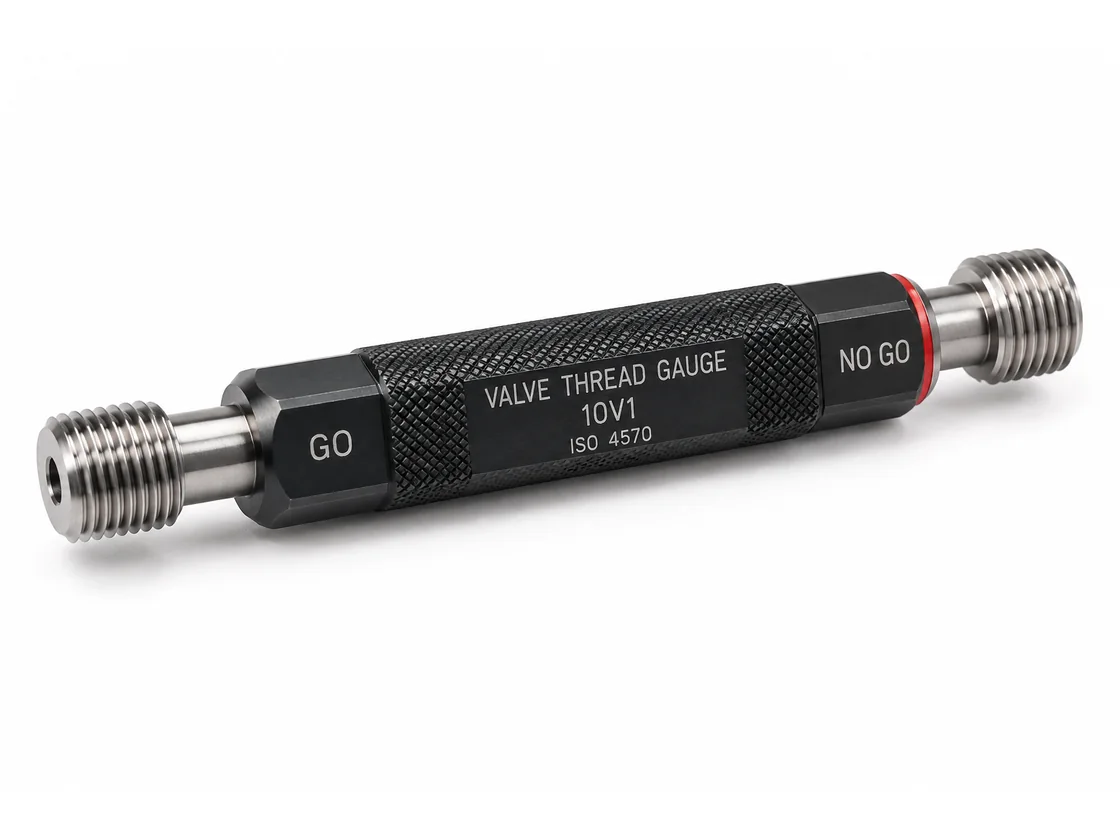

Double-ended GO / NO GO thread plug gauges for tyre valve threads to ISO 4570, with a knurled centre grip and a red identification ring on the NO GO end.

Thread plug
10V1 · ISO 4570
Representative sizes & classes
DesignationStandard
10V1ISO 4570

GO gauge

Enters and passes the complete length of the thread, screwed by hand without excessive force.

NOT-GO gauge

May not enter more than two turns from either end, screwed by hand without excessive force.

Ground on our Matrix thread grinders and verified on TRIMOS H4 before every certificate is issued.

Common questions

Questions about Valve thread gauges

What is a valve thread gauges?

GO / NO GO thread plug gauges for tyre valve threads, to ISO 4570.

Which standard does it follow?

Manufactured to ISO 4570.

What range is available?

Available ranges: Thread plug 10V1 · ISO 4570.

How does GO / NOT-GO acceptance work?

The GO member must enter and pass the complete length of the thread by hand, without excessive force. The NOT-GO member may not enter more than two turns from either end.

How do I request a quote?

Share the thread size and standard on our quote page and we will confirm class, availability and pricing within one business day.

Related

Other gauge families

ACME & Stub ACMETrapezoidal gaugesMetric thread gauges
Thread plug gaugesGauge manufacturer in India

Need valve thread gauges?

Share your thread, standard or drawing and get the right acceptance class, certified. We supply across India and take enquiries from outside India too, see where we supply.
